Description

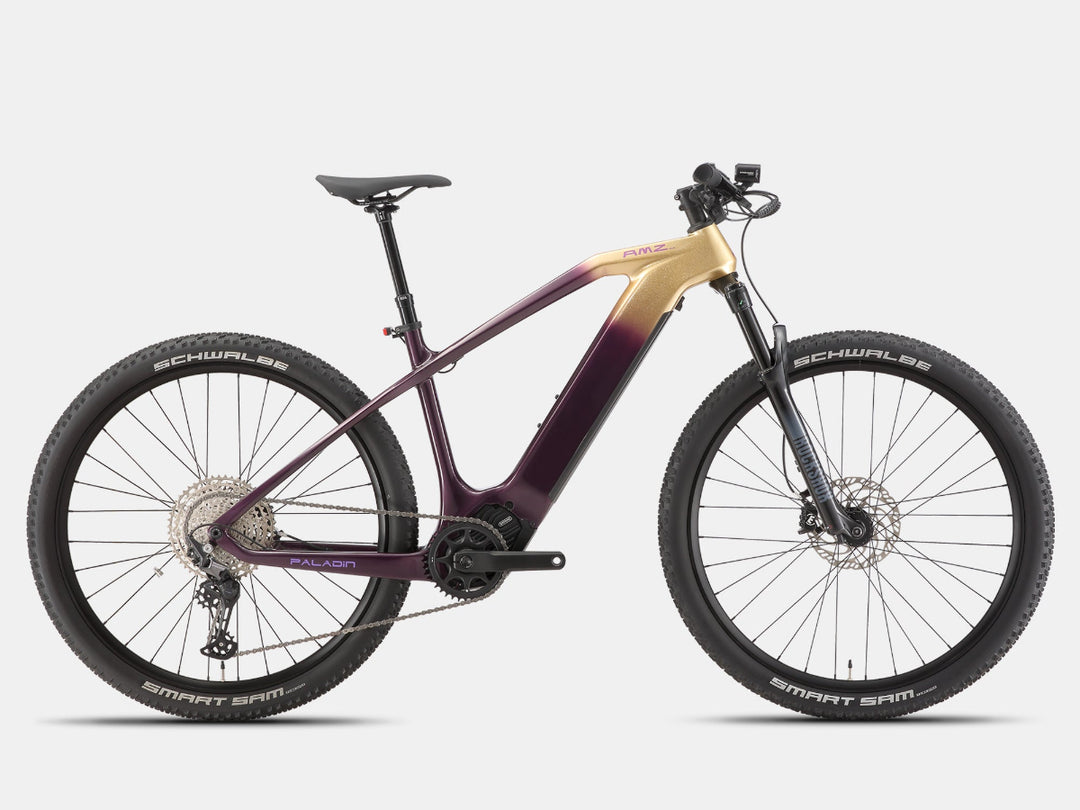

e mountainbike carbon Paladin Electric XC Mountain BikePerformance Table E bike Class Class 1 Usage Scenario Light Off roading + Suburban Riding Applicable height 5'5"6'4" Weight 47. 3 lbs (S) 48. 4 lbs (M) 49. 5 lbs (L) Voltage 48V Charging Time 6 8 hours Maximum Load 264. 56 lbs (converted from 120 kg) Battery Capacity 720 Wh Motor Power 500Wpeak750W) Max Pedelec Range 6275 miles Max Pedelec Speed 20 mph Specification Table Frame Set Full Carbon Fiber Frame; 29" (736mm); 14812mm Axle; Post Mount Brake;
| E-bike Class | Class 1 |
| Usage Scenario | Light Off-roading + Suburban Riding |
| Applicable height | 5'5"–6'4" |
| Weight | 47.3 lbs (S) / 48.4 lbs (M) / 49.5 lbs (L) |
| Voltage | 48V |
| Charging Time | 6-8 hours |
| Maximum Load | 264.56 lbs (converted from 120 kg) |
| Battery Capacity | 720 Wh |
| Motor Power | 500W(peak:750W) |
| Max Pedelec Range | 62–75 miles |
| Max Pedelec Speed | 20 mph |
| Frame Set |
Full Carbon Fiber Frame; 29" (736mm); 148×12mm Axle; Post Mount Brake; UDH; FICR |
| Headset | FICR; 51.8×8.7mm – 51.8×7.5mm Bearing |
| Fork | RockShox 35G; 29" (736mm); 15×110mm Axle; Travel: 4.7" (120mm) |
| Motor | BAFANG M560; 48V; 500W; 120N·m |
| Battery | LG 21700 Cell; 48V 15Ah; UL2271; DC2.1; IPX5 |
| Secondary Battery | NA |
| Controller | BAFANG M560; 48V |
| Display | BAFANG LCD; 3.5" |
| Headlight | LED; 12V 0.3A (3.5W) |
| Taillight | LED; 12V 0.025A (0.3W) |
| Speed Sensor | BaFang SR SD021.01 |
| Dual Control Lever | NA |
| Front Brake | MAGURA MT5 Left Hand; 4-piston Caliper; 2-finger Aluminium Lever Blade; SRAM Matchmaker |
| Rear Brake | MAGURA MT5 Right Hand; 4-piston Caliper; 2-finger Aluminium Lever Blade; SHIMANO I-Spec EV |
| Front Disc | MAGURA STORM MDR-C; 7.1" (180mm); 6-bolt |
| Rear Disc | MAGURA STORM MDR-C; 6.3" (160mm); 6-bolt |
| Shifter | SHIMANO M6100; 12s; I-Spec EV |
| Rear Derailleur | SHIMANO M6100; 12s |
| Chainring | SAMOX AL6061; 38T |
| Crankarm | SAMOX AL6061; 6.5"/6.7"/6.9" (165/170/175mm) |
| Chain | SHIMANO 12s |
| Cassette | SHIMANO M6100; 12s; 10–51T |
| Handlebar |
AL6061; Barbore: 31.8mm; Backsweep: 9°; |
| Stem | AL6061; Angle: -7°; Diameter: 31.8mm; Length: 2.4" (60mm) |
| Saddle | VELO; 10.0"×5.7" (255×145mm) |
| Pedal | 4.6"×4.1" (116×105mm); ZP Bearing |
| Dropper Post | KS 860i; 30.9mm; Travel: 4.9"/5.9" (125/150mm); Air Spring; I-Spec EV |
| Dropper Post Controller | KS WESTY 2.0; Matchmaker Shifters |
| Rims | AL6061; 32H; FV |
| Front Hubs | NovaTec D041sb; 14G; 32H; 110mm |
| Rear Hubs | NovaTec D442sb; 13G; 32H; 148mm |
| Spokes | Front: 14G / Rear: 13G |
| Nipples | Front: 14G / Rear: 13G; 14mm |
| Tubes | KENDA 29×2.35" |
| Tires | Schwalbe Smart Sam; 29×2.35" |
